1951 USAF Resolution Calculator

View All Technical Tools

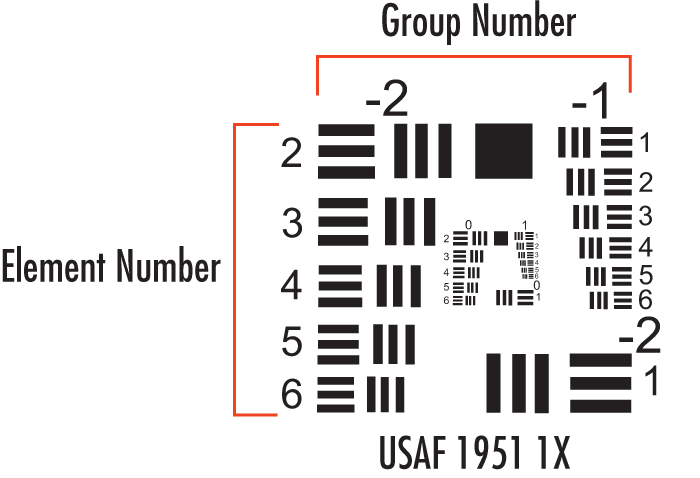

Group Number:

Element Number:

Resolution (lp/mm): --

Focal Length Calculator

$$ \text{Resolution} = 2^{\left( \text{Group Number} + \frac{ \text{Element Number} - 1 }{6} \right)} $$

Description

Determine limiting resolution of an optical or imaging application setup. Calculator uses relationship between group number and element number to determine resolution in terms of line pairs per millimeter.

Related Resources and Products

Application Note

Testing and Targets

Testing and Targets

Application Note

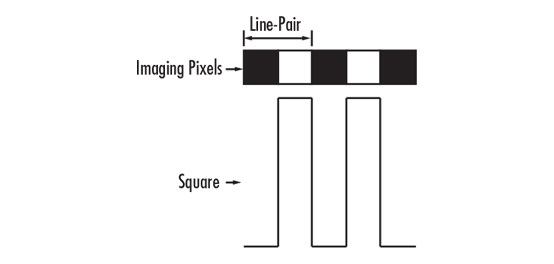

Choosing the Correct Test Target
