76.2mm Dia., Gold Coated, Aluminum Substrate Mirror

(Back)

(Back)

재고 #47-120
KRW 774,100
수량 1-5
KRW 774,100
수량 6
KRW 696,000
수량 가격
견적 요청


Surface Flatness:
λ/2 RMS
Substrate:
Aluminum 6061-T6
Surface Quality:
80-50
Diameter (mm):
76.20 +0.00/-0.38
Coating Specification:
Ravg >94% @ 700 - 800nm
Ravg >97% @ 800 - 2000nm
Ravg >98% @ 2 - 12μm

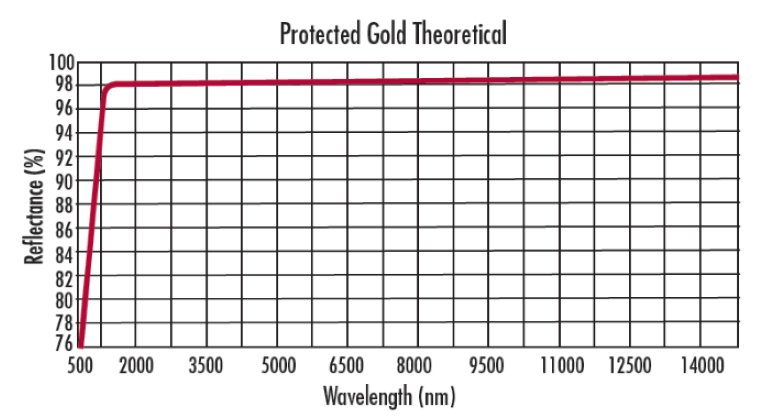

Coating:
Protected Gold (700-12000nm)
Coating Type:
Metal
Clear Aperture (%):
90
Mounting Threads:
8-32 TPI Tapped Holes
Surface Roughness (Angstroms):
<175
Thickness (mm):
12.70
Type:
Flat Mirror
Wavelength Range (μm):
0.7 - 12
Wavelength Range (nm):
700 - 12000

Regulatory Compliance

RoHS 2015:
Reach 191:

제품명

Due to the 17.5nm roughness of the diamond turned surface, these mirrors may not be suitable for UV and visible applications that require low scatter
