75mm CA Series Fixed Focal Length Lens

75mm CA Series Fixed Focal Length Lens

×
재고 #11-321 3~5일내 배송
×
- +
KRW 1,255,800
수량 1+
KRW 1,255,800
가격(부가세 별도)
견적 요청
Get Product Downloads
Iris Option:
Variable
Length (mm):
84.61
Horizontal Field of View, 1/2" Sensor:
36.8mm - 4.4°
Horizontal Field of View, 2/3" Sensor:
50.6mm - 6.0°
Filter Thread:
M40.5 x 0.50 (Female)
Maximum Diameter (mm):
56
Outer Diameter (mm):
56
Weight (g):
448
Horizontal Field of View, 1/3" Sensor:
27.6mm - 3.3°
Maximum Rear Protrusion (mm):
0
Horizontal Field of View, 1" Sensor:
73.6mm - 8.7°
Maximum Image Circle (mm):
27.90
Numerical Aperture NA, Object Side:
0.0393
Horizontal Field of View, 4/3" Sensor:
99.7mm - 11.8°
Horizontal Field of View, 1.1" Sensor:
81.7mm - 9.7°
Number of Elements (Groups):
8 (5)
Horizontal Field of View, 1/1.8" Sensor:
41.4mm - 4.9°
Horizontal Field of View, 1/2.5" Sensor:
33.3mm - 4.0°
Type:
Fixed Focal Length Lens
Focal Length FL (mm):
75.00
Primary Magnification PMAG:
0.158
Maximum Sensor Format:
APS-C
Working Distance (mm):
500 - ∞
Mount:
TFL-Mount
Aperture (f/#):
f/2.8 - f/16
Coating:
λ/4 MgF2
Coating Specification:
λ/4 MgF2
Entrance Pupil Position (mm):
27.88
Horizontal Field of View, 1/4" Sensor:
20.7mm - 2.5°
Object Space Principal Plane (mm):
48.34
Image Space Principal Plane (mm):
-63.62
Field of View at Max Sensor Format:
Horizontal: 142.1mm - 16.9°
Vertical: 106.3mm - 12.7°
Diagonal: 178.2mm - 21°
Maximum Distortion (%):
0.33
Horizontal Field of View, APS-C Sensor:
129.6mm - 15.3°
Exit Pupil Position (mm):
-91.77
Lens Wavelength Range:
VIS
Imaging Lens Type:
High Performance Lens
Storage Temperature (°C):
-20 to +60 For questions regarding operating temperature please contact our support team

Regulatory Compliance

RoHS 2015:
Certificate of Conformance:
Reach 235:

제품군의 상세 설명

  • 머신 비전에 적합한 Compact APS (CA) Lens
  • 27.9mm APS-C 포맷 센서 지원
  • 대형 포맷 센서를 위한 TFL Mount (M35 x 0.75, 17.5mm 플랜지)

TECHSPEC® CA (Compact APS) Series Fixed Focal Length Lenses는 고해상도의 대형 포맷 센서를 위해 설계되었습니다. 28mm image circle로 APS-C 포맷 센서를 커버하는 이 렌즈는 TFL Mount를 특징으로 합니다. TFL Mount는 17.5mm 플랜지 거리와 M35 x 0.75 thread를 가지고 있으며 C-Mount와 동일한 플랜지 거리와 견고함, 사용상의 편의성을 제공합니다. TECHSPEC® CA Series Fixed Focal Length Lenses는 대형 포맷 센서를 수용하는 동시에 콤팩트한 크기를 제공함에 따라 머신 비전과 공장 자동화 용도에 이상적으로 사용할 수 있습니다.

#11-321, 75mm CA Series Fixed Focal Length Lens, Distortion Plot
#11-321, 75mm CA Series Fixed Focal Length Lens, Distortion Plot
#11-321, 75mm CA Series Fixed Focal Length Lens, Relative Illumination Plot
#11-321, 75mm CA Series Fixed Focal Length Lens, Relative Illumination Plot
#11-321, 75mm CA Series Fixed Focal Length Lens, Working Distance versus Field of View Plot
#11-321, 75mm CA Series Fixed Focal Length Lens, Working Distance versus Field of View Plot
#11-321, 75mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 750mm Working Distance, f2.8
#11-321, 75mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 750mm Working Distance, f2.8
#11-321, 75mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 750mm Working Distance, f2.8
#11-321, 75mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 750mm Working Distance, f2.8
#11-321, 75mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 750mm Working Distance, f4
#11-321, 75mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 750mm Working Distance, f4
#11-321, 75mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 750mm Working Distance, f4
#11-321, 75mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 750mm Working Distance, f4
#11-321, 75mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 1500mm Working Distance, f2.8
#11-321, 75mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 1500mm Working Distance, f2.8
#11-321, 75mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 1500mm Working Distance, f2.8
#11-321, 75mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 1500mm Working Distance, f2.8

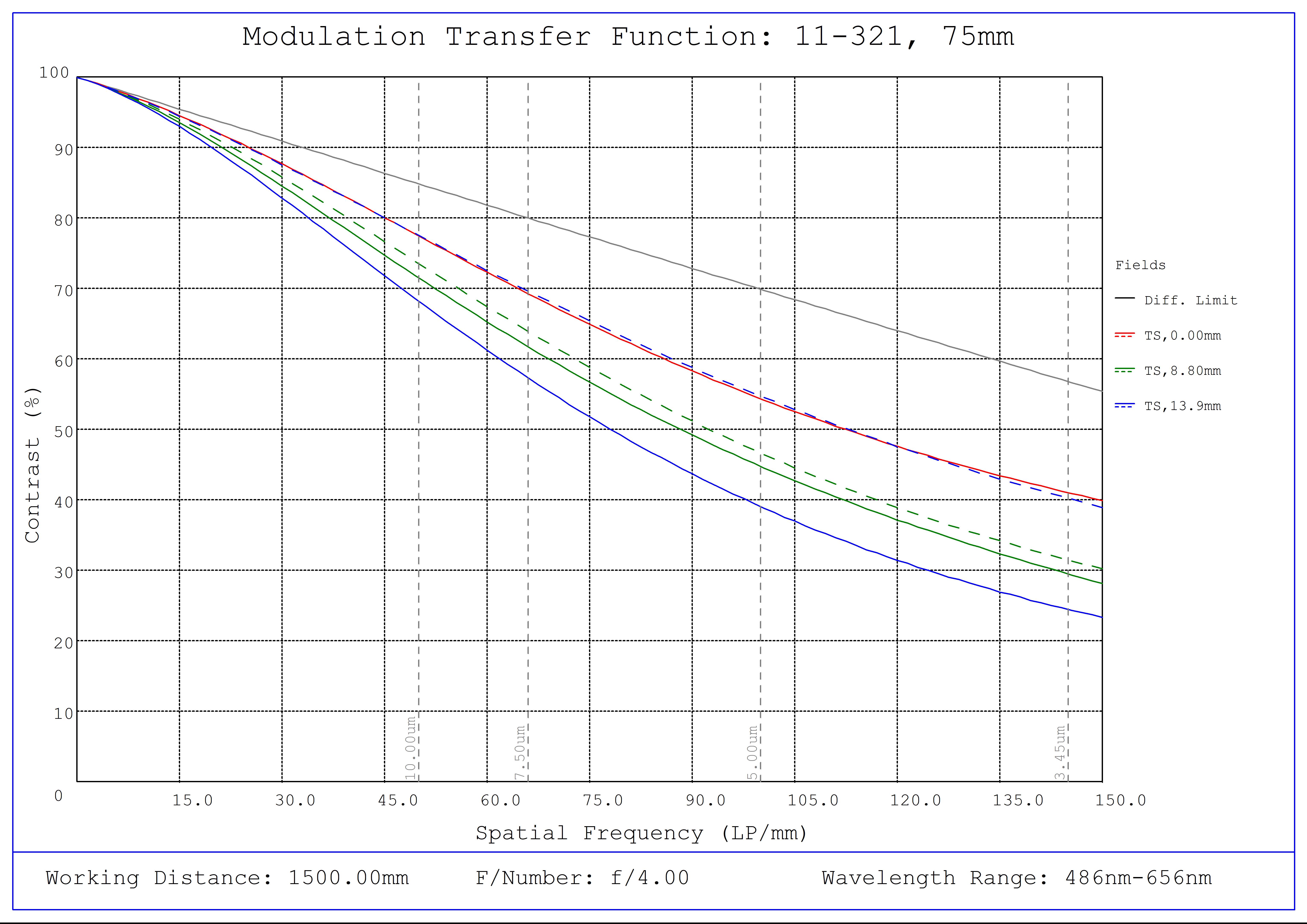

#11-321, 75mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 1500mm Working Distance, f4
#11-321, 75mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 1500mm Working Distance, f4
#11-321, 75mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 1500mm Working Distance, f4
#11-321, 75mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 1500mm Working Distance, f4
