6mm C VIS-NIR Series Fixed Focal Length Lens

6mm C Series VIS-NIR Fixed Focal Length Lens, #39-939

×
재고 #39-939 품절/문의요망
×
- +
KRW 513,400
수량 1+
KRW 513,400
가격(부가세 별도)
견적 요청
Get Product Downloads
Iris Option:
Variable
Length (mm):
48.90
Horizontal Field of View, 1/2" Sensor:
96.7mm - 55.9°
Filter Thread:
M43 x 0.50 with required adapter #85-308
Maximum Diameter (mm):
36
Outer Diameter (mm):
36.0
Weight (g):
102
Horizontal Field of View, 1/3" Sensor:
71.0mm - 42.7°
Maximum Rear Protrusion (mm):
1.13
Maximum Image Circle (mm):
9.00
Numerical Aperture NA, Object Side:
0.0247
Horizontal Field of View @ Max Sensor Format:
109.8mm - 62.1°
Number of Elements (Groups):
9 (7)
Horizontal Field of View, 1/1.8" Sensor:
110.3mm - 62.1°
Front Thread:
M34 x 0.5 (Female)
Horizontal Field of View, 1/2.5" Sensor:
85.42mm - 50.2°
Type:
Fixed Focal Length Lens
Focal Length FL (mm):
6.00
Primary Magnification PMAG:
0.07
Maximum Sensor Format:
1/1.8"
Working Distance (mm):
75 - ∞
Mount:
C-Mount
Aperture (f/#):
f/1.4 - f/16
Coating:
425 - 1000nm BBAR
Coating Specification:
425 - 1000nm BBAR
Entrance Pupil Position (mm):
16
Horizontal Field of View, 1/4" Sensor:
52.68mm - 32.4°
Object Space Principal Plane (mm):
21.35
Image Space Principal Plane (mm):
6.60
Field of View at Max Sensor Format:
Horizontal: 109.8mm - 62.1°
Vertical: 80.2mm - 47.7°
Diagonal: 141.7mm - 75°
Maximum Distortion (%):
-6.84
Exit Pupil Position (mm):
-28.78
Lens Wavelength Range:
VIS-NIR
Imaging Lens Type:
Compact Lens Coated for Visible to Near Infared
Storage Temperature (°C):
-20 to +60 For questions regarding operating temperature please contact our support team

Regulatory Compliance

Certificate of Conformance:

제품군의 상세 설명

  • 실제 공장 자동화를 위한 디자인
  • 2/3” 센서까지 지원
  • 대형의 극대화된 Aperture
  • 낮은 Lens-to-Lens 진동

TECHSPEC® C Series VIS-NIR Fixed Focal Length Lenses는 공장 자동화와 검사에 필요한 working distance 및 resolution을 갖춘 제품입니다. 최대치의 대형 aperture와 1000nm까지 BBAR(광대역무반사) 코팅된 디자인을 특징으로 하는 이런 높은 성능의 렌즈들은 심지어 빛이 제한된 조건에서도 사용할 수 있습니다. TECHSPEC® C Series VIS-NIR Fixed Focal Length Lenses는 제조 시 공차가 높아, 높은 수준의 이미지 성능, 낮은 렌즈 간 진동을 가지며 다중 시스템에서 간편한 설치가 가능합니다. 높은 광학 성능, 산업적 특성, 소형 패키징 사이즈가 결합된 C Series VIS-NIR lenses는 공장 자동화 광학을 대표하는 새로운 표준 제품입니다.

또한 VIS Broadband Anti-Reflection (BBAR) 코팅 처리가 가능합니다.

참고: 단독 IR imaging의 경우, #65-796 UV-VIS Cut Filter threads는 각 렌즈의 M25.5 x 0.5 front filter thread 위로 바로 결합됩니다.

#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Distortion Plot
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Distortion Plot
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, DistortionPlot (NIR)
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, DistortionPlot (NIR)
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Relative Illumination Plot
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Relative Illumination Plot
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Relative Illumination Plot (NIR)
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Relative Illumination Plot (NIR)
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Working Distance versus Field of View Plot
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Working Distance versus Field of View Plot

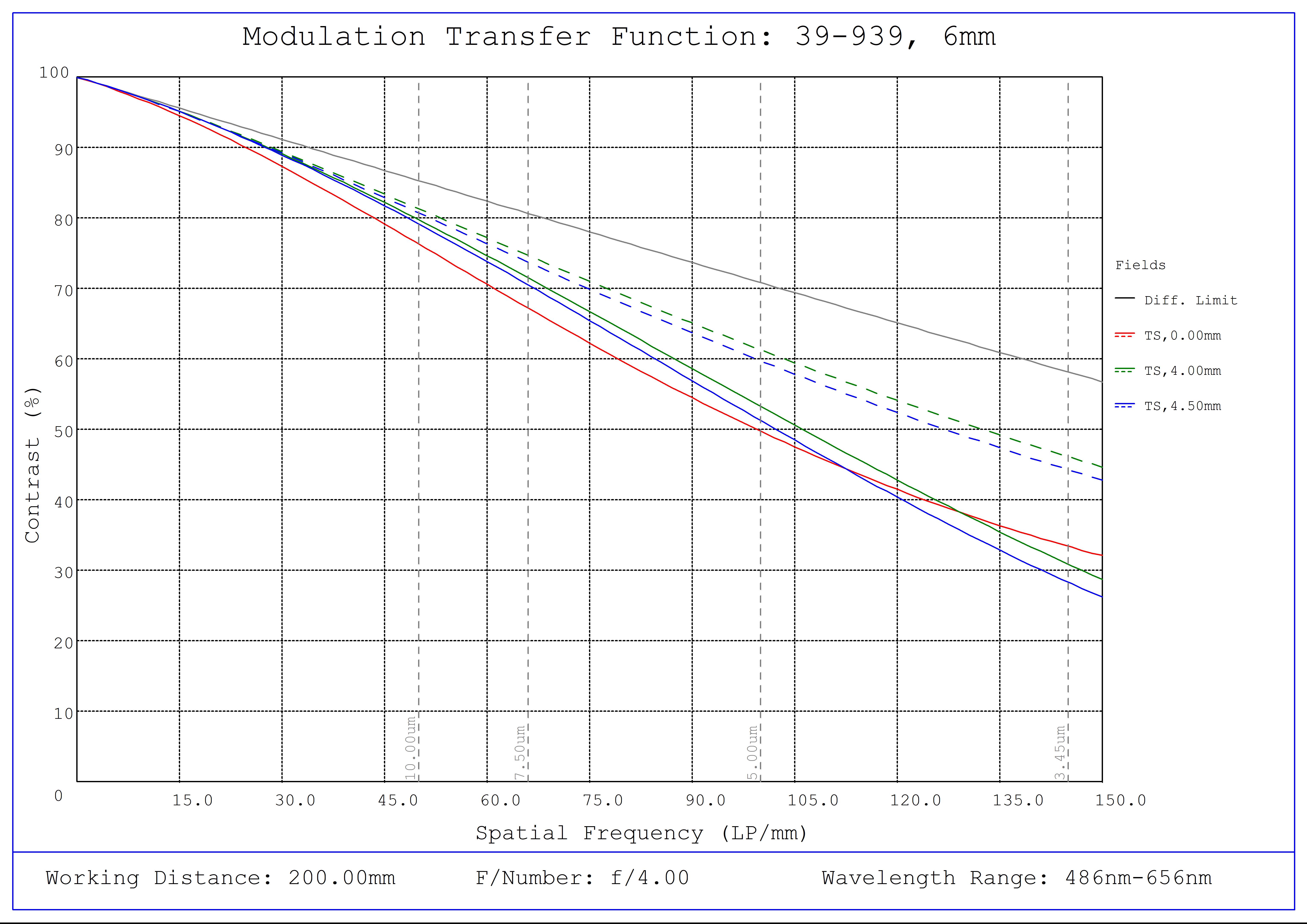

#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 200mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 200mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 200mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 200mm Working Distance, f2.8

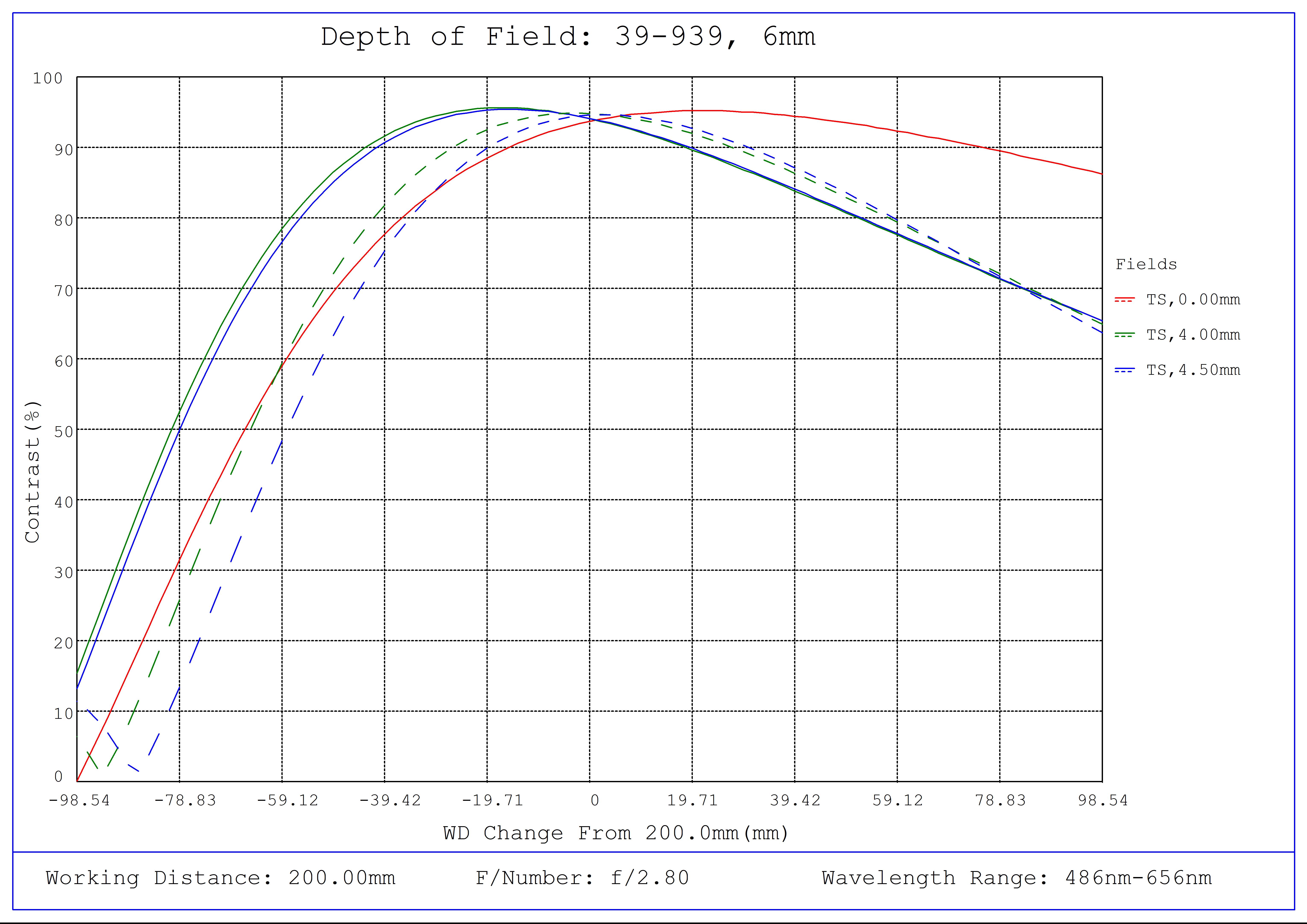

#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 200mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 200mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 200mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 200mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 200mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 200mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 200mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 200mm Working Distance, f4

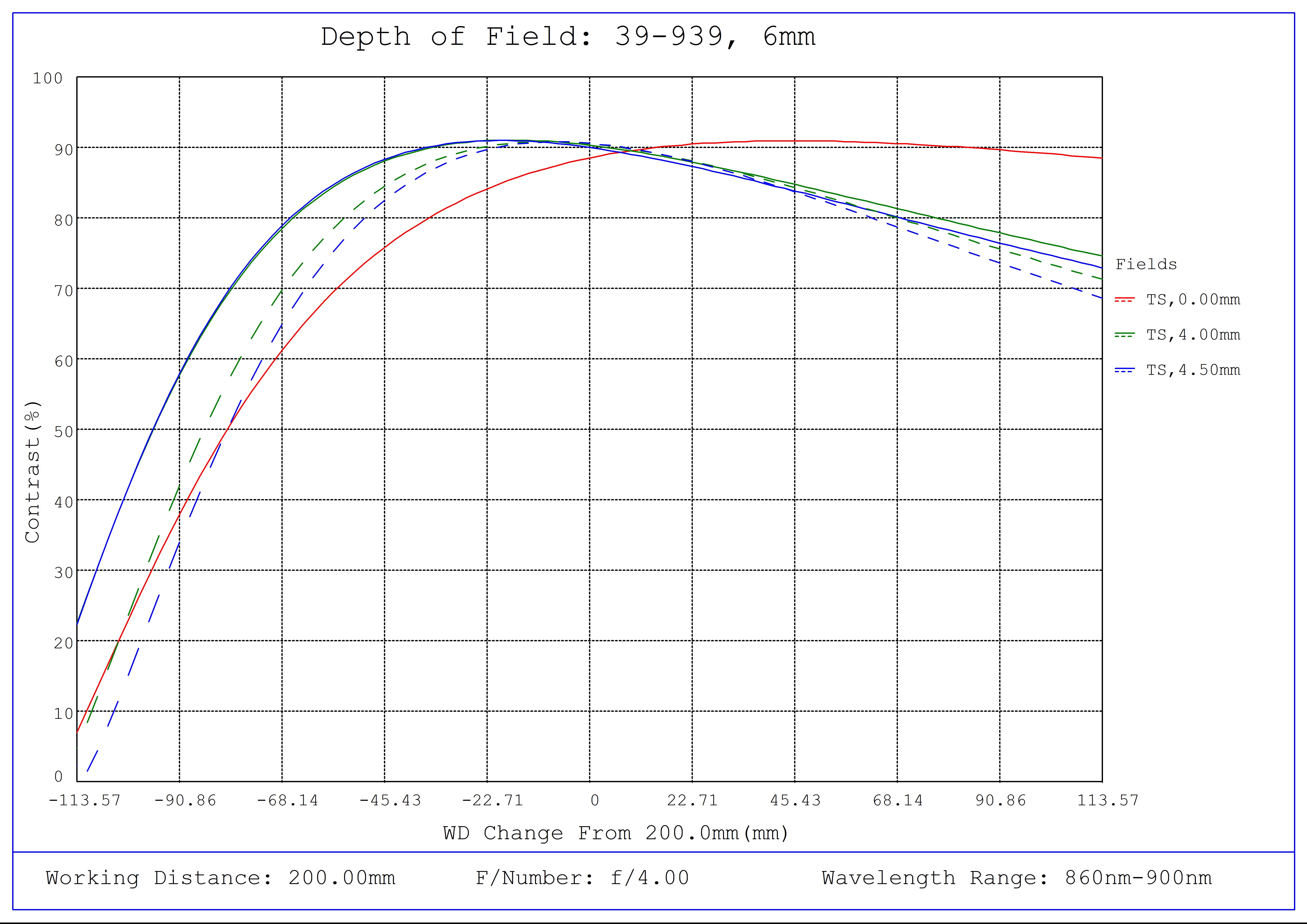

#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 200mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 200mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 200mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 200mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 500mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 500mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 500mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 500mm Working Distance, f2.8

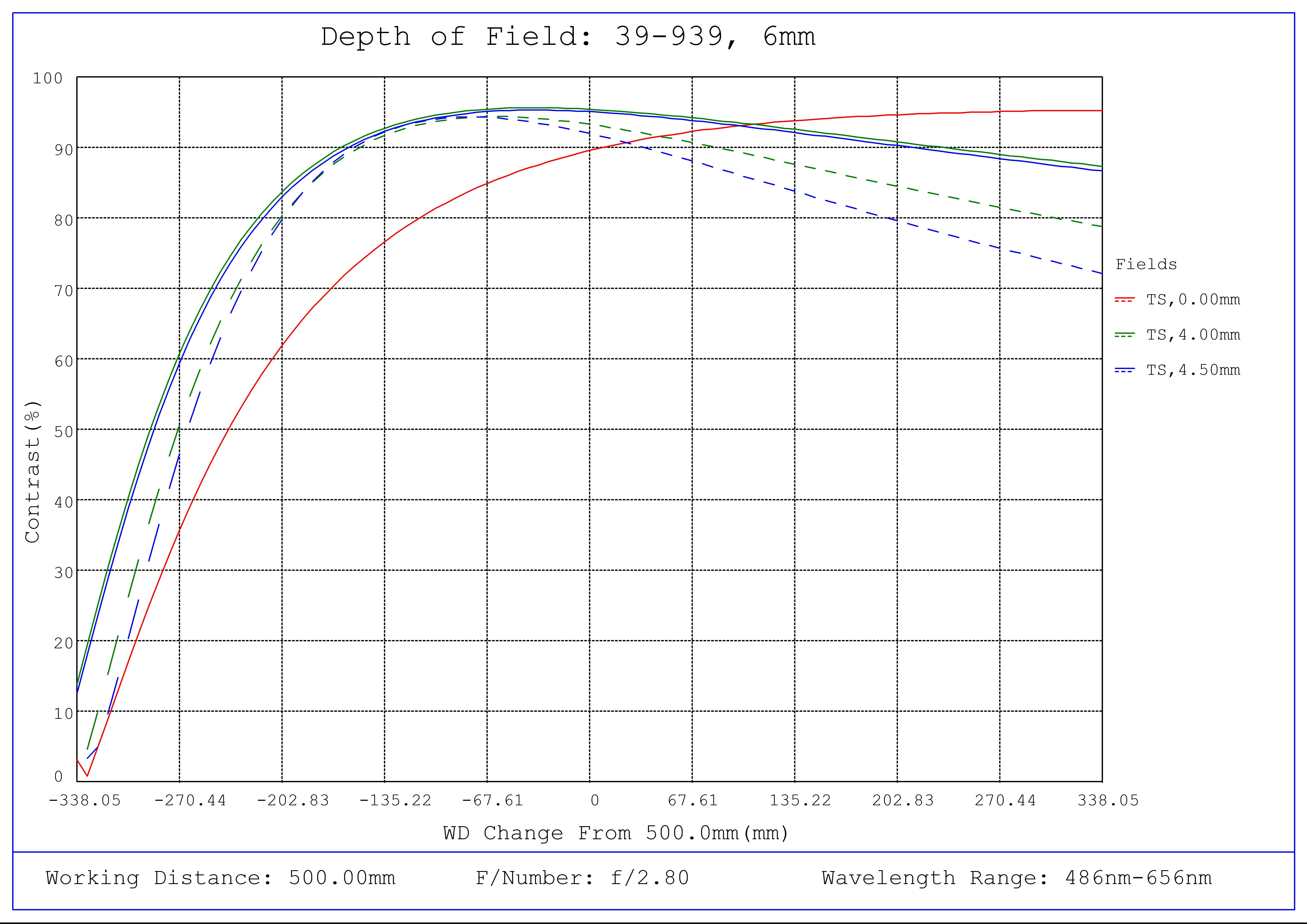

#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 500mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 500mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 500mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 500mm Working Distance, f2.8
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 500mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 500mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 500mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot (NIR), 500mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 500mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot, 500mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 500mm Working Distance, f4
#39-939, 6mm C VIS-NIR Series Fixed Focal Length Lens, Depth of Field Plot (NIR), 500mm Working Distance, f4

기술 정보


Focal Length A B C D
16mm 33.0mm 40.5mm 33.0mm 1.0mm
25mm 31.0mm 30.5mm 31.0mm 1.3mm
35mm 33.0mm 41.0mm 33.0mm 0mm
50mm 35.8mm 53.7mm 35.8mm 2.85mm
