50.8mm Optic Diameter, X-Y-Z Translating Optic Mount

X-Y Translating Optic Mounts
X-Y-Z Translating Optic Mounts
5 Axes Optical Mount

X-Y Translating Optic Mounts

X-Y-Z Translating Optic Mounts

5 Axes Optical Mount

재고 #62-960
KRW 616,500
수량 1-10
KRW 616,500
수량 11
KRW 554,900
수량 가격
견적 요청


Type:
Adjustable - Linear (XYZ)
Construction:
Black Anodized Aluminum
Type of Optics:
Circular
Size of Compatible Optics (mm):
50.0/50.8
Clear Aperture CA (mm):
46.0
Thickness of Compatible Optics (mm):
11.0 (Max)

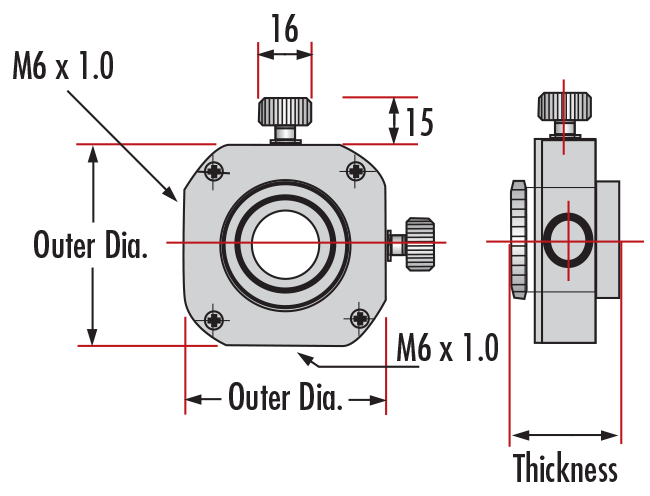

Outer Diameter (mm):
97.0
Thickness (mm):
36.0
Travel (mm):
±1.5 in X and Y, ±1.5 in Z
Compatible Post:
M6 x 1.0
Weight (g):
240

Regulatory Compliance

제품군의 상세 설명

  • 2-Axis, 3-Axis, and 5-Axis Adjustable Mounts Available
  • Options for 12.5mm (0.5”), 25mm (1”), and 50mm (2”) Dia. Optics
  • M6 Mounting Threads

Multi-Axis Adjustable Optic Mounts can adjust optic positioning along the X- and Y-axes, as well as through optional Z-axis and Tip/Tilt adjustment. Compact packaging allows for fine alignment adjustments without the additional use of bulkier stages. Multi-Axis Adjustable Optic Mounts are ideal for alignment adjustments in prototyping and precision laboratory benchtop optical systems. These mounts include M6 mounting threads making them compatible with our standard Metric Stainless Steel Mounting Posts. A retainer ring and Delrin ring are used together to secure the optic without damaging its surface.
