CCS High-Angle LED Ring Lights

CCS 상세 정보 보기
CCS High-Angle LED Ring Lights

CCS High-Angle LED Ring Lights

×
  • High-Angle, Direct Lighting for Uniform Intensity
  • Designed for Constant Output Power for Prolonged Use
  • Ideal for Brightfield Illumination

CCS High-Angle LED Ring Lights provide illumination at a high angle of incidence for brightfield imaging applications. High density LED mounting and a flexible circuit board ensures uniform illumination intensity across all sizes of ring lights. These high-angle LED ring lights are designed to maintain constant output power over prolonged periods. CCS High-Angle LED Ring Lights alleviate the influence of slight differences in position or inclination of a sample for stable imaging and are ideal for industrial and manufacturing applications.

공통 스펙

Type of Illumination:
LED Illuminator
Manufacturer:
CCS
Geometry:
High-Angle Ring Light
Illumination Mode:
Constant
Input Voltage (V):
24
Power Supply:
Power Supply Required and Sold Separately:
USA: #73-491
Europe: #73-491
Japan: #89-513
Korea: #33-733
China: #73-491

제품정보

 Color   Wavelength (nm)   Power Consumption (W)   Dimensions (mm)   제품 비교하기   재고 번호   가격(부가세 별도)  구입하기
IR 850.00 3.8 OD: 50, ID: 28, Height: 16
IR 940.00 3.8 OD: 50, ID: 28, Height: 16
Red 630.00 3.1 OD: 50, ID: 28, Height: 16
White - 3.8 OD: 50, ID: 28, Height: 16
Blue 470.00 3.8 OD: 50, ID: 28, Height: 16
Red 630.00 6.1 OD: 70, ID: 35, Height: 22
White - 7.6 OD: 70, ID: 35, Height: 22
Blue 470.00 7.6 OD: 70, ID: 35, Height: 22
Red 630.00 11 OD: 90, ID: 50, Height: 20
White - 14 OD: 90, ID: 50, Height: 20
Blue 470.00 14 OD: 90, ID: 50, Height: 20

제품설명

3D-Printable Mount Files

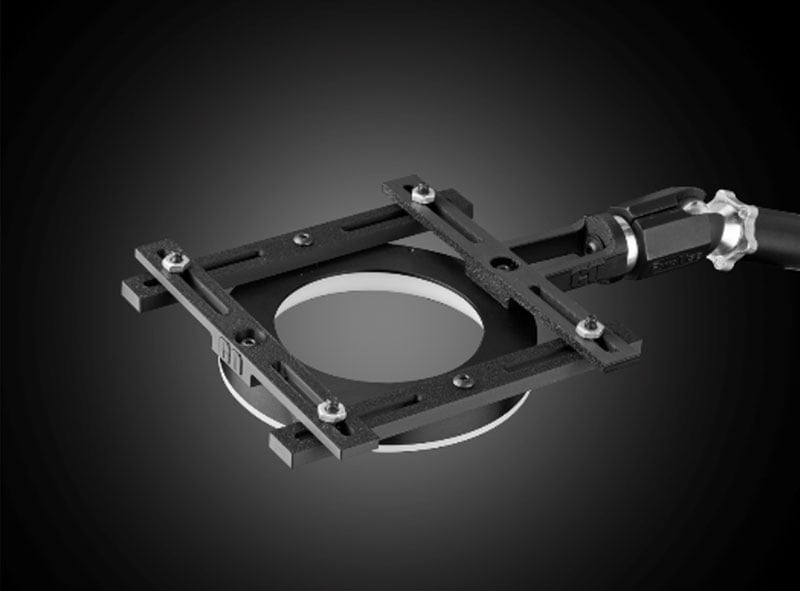

Ring Light Configuration Download Now
Designed for use with the Articulating Arm Mounting Systems, these 3D-printed mounts allow easy positioning of lights in brightfield or darkfield setups. The design is based on mounting illumination to ¼-20" breadboards or into 80/20 extrusion systems, but can be adapted based on user needs. Mounts are available for ring, bar, line, and inline spot lights.
Application Note

Illumination Mounts for Machine Vision Applications
Read

Video

Assembly of 3D Printed Mounts for Common Illumination Geometries
Watch

제품자료

액세서리

제목 제품 비교하기재고 번호  가격(부가세 별도) 구입하기
Power Supply 24V 2A #33-773 KRW 133,000   견적 요청
  • 품절/문의요망
    ×
