2.0 - 35.0mm Optic Dia., Three-Screw Adjustable Ring Mount

가격(부가세 별도)
수량 1-9	KRW 89,900 개당
수량 10-19	KRW 79,900 개당
수량 20-49	KRW 74,000 개당
더 필요하신가요?	견적 요청

제품사양

General

Type:

Fixed

Type of Optics:

Circular

Physical & Mechanical Properties

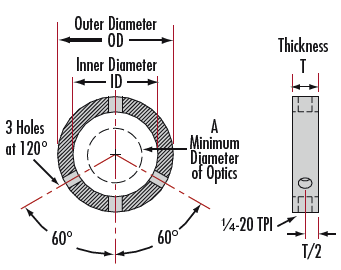

Inner Diameter (mm):

39.0

Outer Diameter (mm):

53.0

Thickness (mm):

12.00

Threading & Mounting

Size of Compatible Optics (mm):

2.0 - 35.0

Compatible Post:

¼-20

Regulatory Compliance

RoHS 2015:

Compliant

Reach 224:

Compliant

Certificate of Conformance:

보기

제품설명

원형 옵틱과 레이저 튜브의 마운팅 및 센터링에 적합
보호용 나일론 팁 나사
포스트 장착 용도를 위한 1/4-20 TPI Mounting Thread

Three-Screw Ring Mounts are ideal for mounting and centering non-standard circular optics and laser tubes while maintaining a constant optical centerline of the system. These mounts can also be used with standard sized circular optics for rapid prototyping or applications where frequent replacement is required. Featuring manually adjustable protective nylon tipped screws, these mounts support optics ranging in size from 2-108mm. Three-Screw Ring Mounts are directly mountable to TECHSPEC® Stainless Steel Mounting Posts and Pedestal Posts via a ¼-20 tapped mounting hole.
