50mm CA Series Fixed Focal Length Lens

Name: 50mm CA Series Fixed Focal Length Lens
Brand: TECHSPEC
SKU: 11-320
Price: KRW 1,173,000 KRW

재고 번호 #11-320 20+개 보유

- +

KRW 1,173,000

가격(부가세 별도)
수량 1+	KRW 1,173,000 개당
더 필요하신가요?	견적 요청

+ 저장 목록에 추가하기
Create an account or log in to access saved list

제품 비교하기

제품 정보 다운로드

제품사양

General

Series:

CA Series

Type:

Fixed Focal Length Lens

Imaging Lens Type:

High Performance Lens

Physical & Mechanical Properties

Iris Option:

Variable

Length (mm):

72.58

Maximum Diameter (mm):

Outer Diameter (mm):

Weight (g):

276

Maximum Rear Protrusion (mm):

Optical Properties

Field of View at Max Sensor Format:

Horizontal: 93.5mm - 25.2°
Vertical: 70.1mm - 19°
Diagonal: 116.8mm - 31.2°

Horizontal Field of View, APS-C Sensor:

93.8mm - 25.2°

Horizontal Field of View, 4/3" Sensor:

72.4mm - 19.6°

Horizontal Field of View, 1.1" Sensor:

59.5mm - 16.1°

Horizontal Field of View, 1" Sensor:

52.6mm - 14.6°

Horizontal Field of View, 2/3" Sensor:

36.1mm - 10.1°

Horizontal Field of View, 1/1.8" Sensor:

30.1mm - 8.2°

Horizontal Field of View, 1/2" Sensor:

26.8mm - 7.3°

Horizontal Field of View, 1/2.5" Sensor:

24.3mm - 6.6°

Horizontal Field of View, 1/3" Sensor:

20.1mm - 5.5°

Horizontal Field of View, 1/4" Sensor:

15.1mm - 4.1°

Maximum Image Circle (mm):

27.90

Numerical Aperture NA, Object Side:

0.059

Number of Elements (Groups):

7 (5)

Focal Length FL (mm):

50.00

Working Distance (mm):

200 - ∞

Aperture (f/#):

f/1.8 - f/16

Coating:

λ/4 MgF₂

Coating Specification:

λ/4 MgF₂

Entrance Pupil Position (mm):

30.93

Object Space Principal Plane (mm):

55.36

Image Space Principal Plane (mm):

-27.42

Maximum Distortion (%):

-0.36

Exit Pupil Position (mm):

-75.18

Lens Wavelength Range:

VIS

Sensor

Maximum Sensor Format:

APS-C

Pixel Size (μm):

2.74

Threading & Mounting

Filter Thread:

M37.5 x 0.50 (Female)

Mount:

TFL-Mount

Environmental & Durability Factors

Storage Temperature (°C):

-20 to +60

Regulatory Compliance

RoHS 2015:

Compliant

Certificate of Conformance:

보기

REACH 241:

Compliant

제품설명

APS-C(27.9mm), TFL-마운트, M40 마운트 렌즈
3000만 화소 이상, 3.45µm 픽셀 크기의 센서
고해상도, CA(Compact APS-C) 렌즈
초점 거리: 35 - 100mm

해당 제품은 고해상도 대형 포맷 센서에 맞게 설계되었습니다. 또한, 28mm의 이미지 써클을 제공하는 APS-C 포맷 센서를 커버하며 TFL-마운트가 특징입니다. TFL-마운트는 17.5mm 플랜지 거리와 M35 x 0.75 스레드가 적용되어 있으며 이는 C-마운트와 동일한 플랜지 거리, 견고함, 사용 편의성을 제공합니다. 해당 제품은 대형 포맷 센서와 호환되면서도 크기가 컴팩트해서 머신 비전 및 공장 자동화 어플리케이션에 적합합니다.

해당 제품은 2020 Inspect Award에서 3위를 차지하고, 비전 시스템즈 디자인이 주최하는 2020 Innovators Award에서 은상을 수상했습니다.

50mm CA Series Fixed Focal Length Lens

제품사양

General

Physical & Mechanical Properties

Optical Properties

Sensor

Threading & Mounting

Environmental & Durability Factors

Regulatory Compliance

제품설명

제품자료

#11-320, 50mm CA Series Fixed Focal Length Lens, Distortion Plot

#11-320, 50mm CA Series Fixed Focal Length Lens, Relative Illumination Plot

#11-320, 50mm CA Series Fixed Focal Length Lens, Working Distance versus Field of View Plot

#11-320, 50mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 350mm Working Distance, f2.8

#11-320, 50mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 350mm Working Distance, f2.8

#11-320, 50mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 350mm Working Distance, f4

#11-320, 50mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 350mm Working Distance, f4

#11-320, 50mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 750mm Working Distance, f2.8

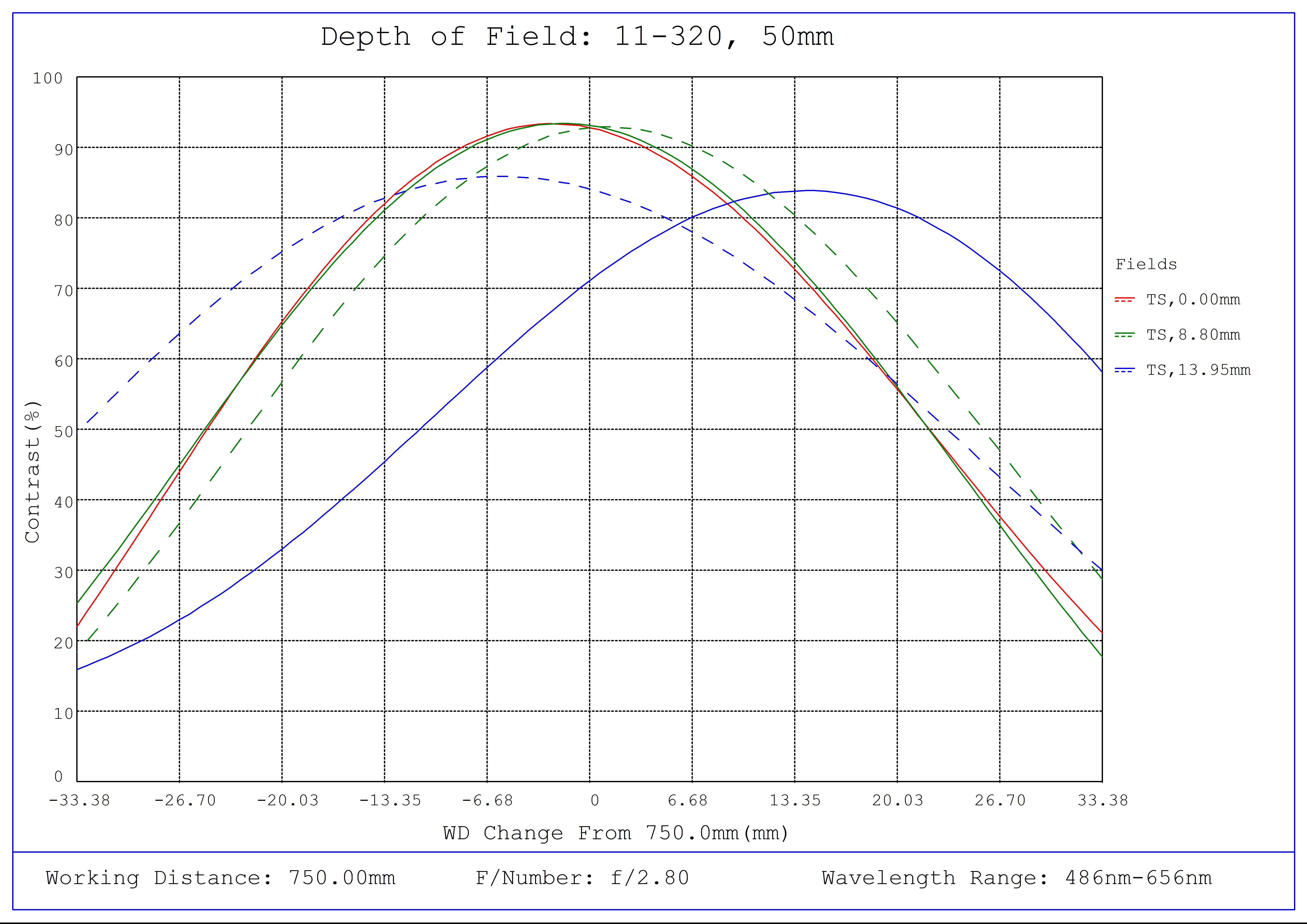

#11-320, 50mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 750mm Working Distance, f2.8

#11-320, 50mm CA Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 750mm Working Distance, f4

#11-320, 50mm CA Series Fixed Focal Length Lens, Depth of Field Plot, 750mm Working Distance, f4
