Photometrics Prime BSI Express, USB 3.2 Camera, 1T-01-PRIME-BSI-EXP

Name: Photometrics Prime BSI Express, USB 3.2 Camera, 1T-01-PRIME-BSI-EXP
SKU: 90-390
Price: KRW 22,475,000 KRW

재고 번호 #90-390 신제품 품절/문의요망

- +

KRW 22,475,000

재고 정보는 글로벌 재고 현황을 반영한 수치로, 국가별/지역별 실재고와는 차이가 있을 수 있습니다.
정확한 구매 가능 수량은 장바구니에 제품을 추가하여 확인해 보세요.

가격(부가세 별도/Tax excluded)
수량 1+	KRW 22,475,000 개당
더 필요하신가요?	견적 요청

+ 저장 목록에 추가하기
Create an account or log in to access saved list

제품 비교하기

제품 정보 다운로드

제품사양

Spectrum:

Monochrome

General

Type:

Monochrome Camera

Model Number:

1T-01-PRIME-BSI-EXP

Manufacturer:

Teledyne Photometrics

Camera Series:

Prime BSI Express

Note:

Includes:
USB 3.2 Gen 2 Cables
USB 3.2 Gen 2 Interface Card
12V/ 5A power supply with international power cord set
(2) Single-line MMCX trigger cables
USB memory device containing PVCAM library and drivers
Quick Installation Guide

Physical & Mechanical Properties

Dimensions (mm):

78 x 78 x 88

Weight (g):

760

Housing:

Full

Optical Properties

Wavelength Range (nm):

200 - 1100

Sensor

Sensor Format:

1.2"

Resolution (Megapixels):

4.20

Frame Rate (fps):

95.00

Pixels (H x V):

2,048 x 2,048

Sensing Area, H x V (mm):

13.31 x 13.31

Imaging Sensor:

GPixel Gsense 2020BSI

Type of Sensor:

Progressive Scan CMOS

Shutter Type:

Rolling

Pixel Depth:

11, 12, 16 bit

Exposure Time:

6μs- 10s

Dynamic Range (dB):

Hardware & Interface Connectivity

Connector:

USB 3.2 Gen 2

Power Supply:

Power over GPIO with #90-399

GPIOs:

1 configurable input, 3 configurable outputs

Synchronization:

Hardware Trigger (GPIO) or Software Trigger

Interface Port Orientation:

Back Panel

GPIO Connector Type:

BNC

Threading & Mounting

Mount:

C-Mount

Mounting Threads:

(1) ¼–20 thread per side

Environmental & Durability Factors

Operating Temperature (°C):

0 to 30

Storage Temperature (°C):

–20 to 60

Regulatory Compliance

RoHS 2015:

면제

Certificate of Conformance:

보기

Reach 247:

Contains SVHC(s)

제품설명

과학 분야용 고감도 후방 조명 sCMOS
95%의 양자 효율, 1.0 e-의 초저 판독 노이즈
USB 3.2를 통한 95fps
고감도 현미경 어플리케이션에 적합한 과학용 카메라

해당 제품은 고감도 후방 조명 sCMOS 센서를 탑재하고 있습니다. 95%의 피크 QE(Quantum Efficiency, 양자 효율)와 1.0 e^-의 초저 중앙값 판독 노이즈를 구현하여 저조도 이미징 환경에서도 높은 신호 대 잡음비(S/N)와 뛰어난 성능을 제공합니다. USB 3.2 인터페이스를 사용하는 카메라이며 95fps를 구현하도록 설계되어 고속 이미징과 빠른 데이터 전송이 가능합니다. 해당 제품은 형광 및 칼슘 이미징과 생세포 현미경에 적합합니다. 또한, Teledyne이 독자적으로 설계한 소프트웨어 플랫폼인 Beacon과 PVCAM을 포함하고 있어 카메라 성능 최적화는 물론 시스템 통합을 쉽게 수행할 수 있습니다.

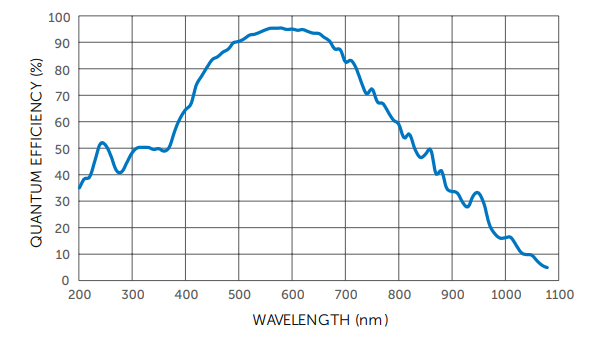

Sensitivity

The Prime BSI Express sCMOS camera delivers high sensitivity, high speed, and reliable quantitative imaging in a compact and easily integrated design. Built around a backside-illuminated scientific CMOS sensor, the camera achieves up to 95% peak quantum efficiency, enabling exceptional photon detection for demanding low-light microscopy applications. The Prime BSI express combines quantum efficiency with a low 1.0 e- read noise to deliver the most sensitive camera based on sCMOS technology at 95 frames per second.

Resolution and Pixel Size

With a 2048 × 2048 resolution and 6.5 μm pixels, the Prime BSI Express provides an optimal balance between spatial resolution and sensitivity, making it well suited for a wide range of fluorescence imaging techniques. The camera reaches full-frame acquisition speeds of up to 95 frames per second, ensuring that fast biological dynamics can be captured without missed events.

Performance and Integration

Designed for both research and system integration, the camera combines low read noise (~1 e⁻), high dynamic range, and programmable scan modes to support advanced imaging workflows while maintaining precise and quantitative data acquisition. Its compact form factor and USB 3.2 Gen2 interface simplify integration into modern microscopy platforms and OEM imaging systems.

Ideal Applications

The Prime BSI Express is ideal for applications requiring both sensitivity and speed, including live-cell imaging, spinning disk confocal microscopy, light-sheet microscopy, calcium imaging, and super-resolution techniques.
