Photometrics Moment USB 3.2 Camera, 1T-01-MOMENT-MONO

Name: Photometrics Moment USB 3.2 Camera, 1T-01-MOMENT-MONO
SKU: 90-393
Price: KRW 8,555,000 KRW

재고 번호 #90-393 신제품 1개 보유

- +

KRW 8,555,000

Inventory reflects global availability, not local stock.
For detailed inventory, please add to your cart.

가격(부가세 별도/Tax excluded)
수량 1+	KRW 8,555,000 개당
더 필요하신가요?	견적 요청

+ 저장 목록에 추가하기
Create an account or log in to access saved list

제품 비교하기

제품 정보 다운로드

제품사양

Spectrum:

Monochrome

General

Type:

Monochrome Camera

Model Number:

1T-01-MOMENT-MONO

Manufacturer:

Teledyne Photometrics

Camera Series:

Moment

Note:

Includes:
USB Interface Card
USB cable
(2) single-line MMCX trigger cables
USB memory device containing PVCAM library and drivers
Quick Installation Guide

Physical & Mechanical Properties

Dimensions (mm):

40 x 42 x 50

Weight (g):

Housing:

Full

Optical Properties

Wavelength Range (nm):

300 - 1100

Sensor

Sensor Format:

1.1"

Resolution (Megapixels):

7.00

Frame Rate (fps):

51.00

Pixels (H x V):

3,200 x 2,200

Sensing Area, H x V (mm):

14.4 x 9.9

Imaging Sensor:

Sony-Based

Type of Sensor:

Progressive Scan CMOS

Shutter Type:

Global

Pixel Depth:

12 bit

Exposure Time:

12μs- 1s

Dynamic Range (dB):

Hardware & Interface Connectivity

Connector:

USB 3.2 Gen 2

Power Supply:

Power over USB

GPIOs:

1 configurable input, 1 configurable outputs

Synchronization:

Hardware Trigger (GPIO) or Software Trigger

Interface Port Orientation:

Back Panel

GPIO Connector Type:

BNC

Threading & Mounting

Mount:

C-Mount

Mounting Threads:

(1) M3 x 0.5 thread per side

Environmental & Durability Factors

Operating Temperature (°C):

0 to 30

Storage Temperature (°C):

–20 to 60

Regulatory Compliance

RoHS 2015:

면제

Certificate of Conformance:

보기

Reach 247:

Contains SVHC(s)

제품설명

굉장히 컴팩트한 CMOS
저잡음, 고속 이미징
트루 글로벌 셔터
고감도 현미경 어플리케이션에 적합한 과학용 카메라

해당 제품은 크기가 50mm × 40mm × 42mm에 불과하며 단일 고속 USB 3.2 Gen 2 케이블로 구동됩니다. 따라서 좁은 공간에 놓인 현미경 시스템은 물론 복잡한 멀티 디바이스 프로세스에도 손쉽게 통합할 수 있습니다. 판독 노이즈가 낮은 CMOS 센서와 트루 글로벌 셔터가 결합되어 있어 12비트 심도로 최대 50fps의 고속 이미징을 구현합니다. 해당 제품은 생세포 이미징, 광시트 현미경, 초고해상도 현미경처럼 까다로운 어플리케이션에 적합합니다. 또한, Teledyne이 독자적으로 설계한 소프트웨어 플랫폼인 Beacon과 PVCAM을 포함하고 있어 카메라 성능 최적화는 물론 시스템 통합을 쉽게 수행할 수 있습니다.

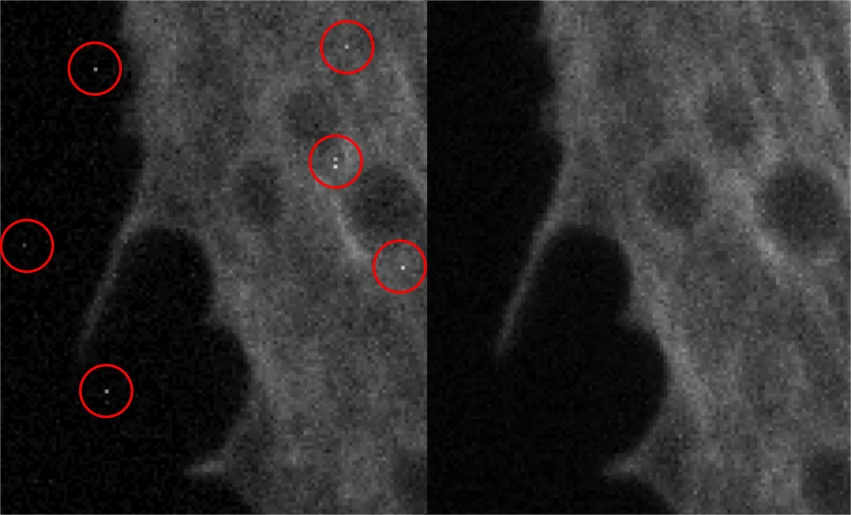

Scientific Image Quality

The Moment delivers quantitative measurements and optimizes image quality by suppressing hot pixels and patterns common to industrial devices.

Combined with low dark noise and optimized linearity the Moment gives high quality images in low light situations.

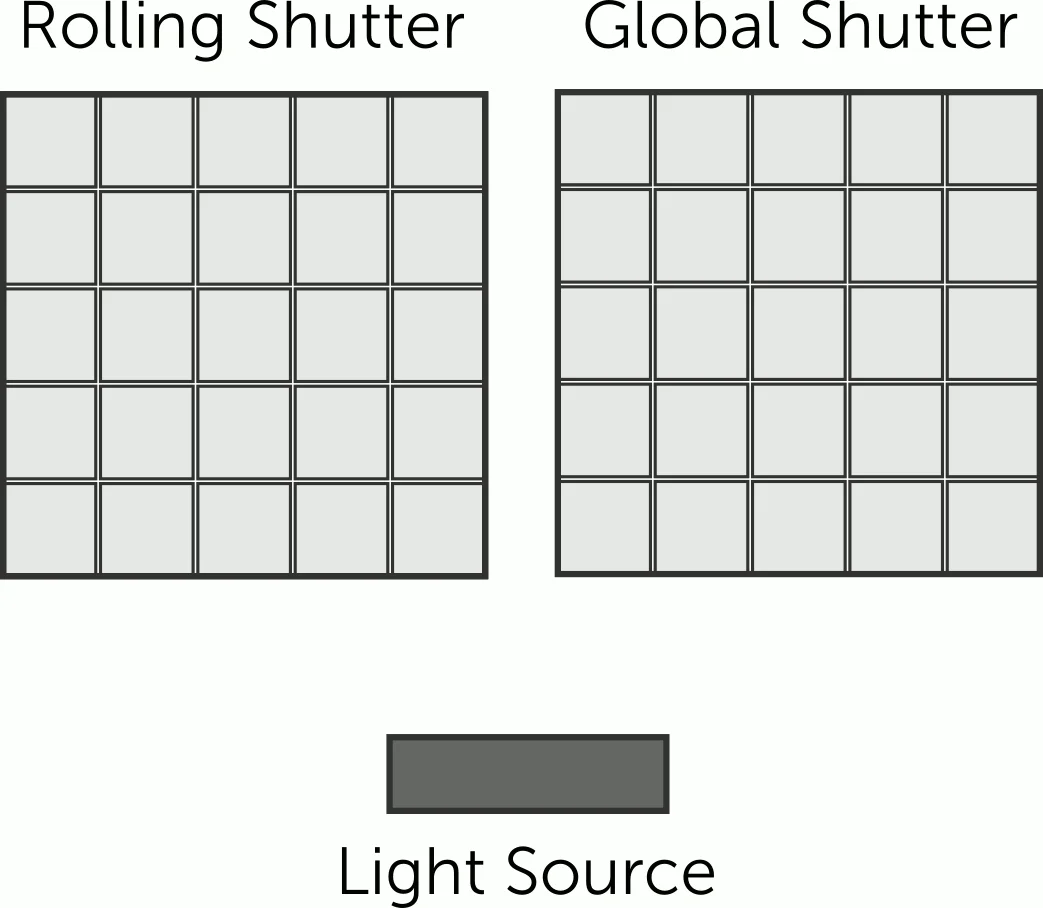

Global Shutter Snapshot

Global shutter minimizes the complexity of illumination control, simplifying your imaging setup. Collect all the light that comes your way without the dead time, artefacts and synchronization issues of a rolling shutter device.

Ultra-compact Form Factor

Measuring just 50 mm x 40 mm x 42 mm, the Moment is truly compact. Over 3 times smaller than other CMOS devices on the market, the Moment can fit easily into existing instruments, or minimize the footprint of your new device.

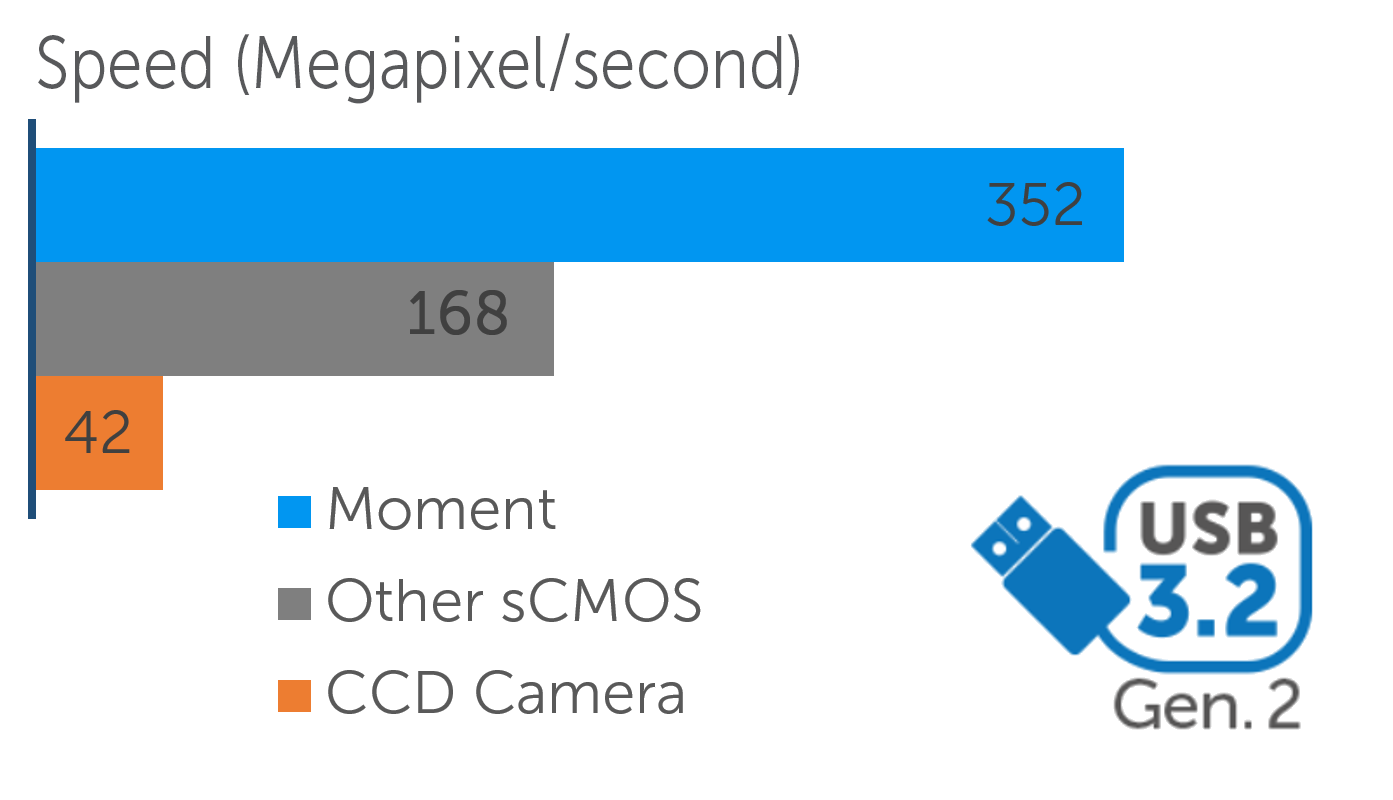

Speed and Simplicity

The Moment utilizes the simple, versatile and high-speed USB 3.2 Gen 2 – 10 GBit/s interface to deliver 50 fps full frame. What’s more, both data and power are provided by the same cable, simplifying integration.

Design and Integrate

Interfacing and integration is simple with the Moment. With its compact design and single cable interface, hardware integration is straightforward. And with onboard triggering, combined with Windows and Linux support, communicating with a camera has never been easier.
